Infra Red Elevator Door Detector THY-LC-917

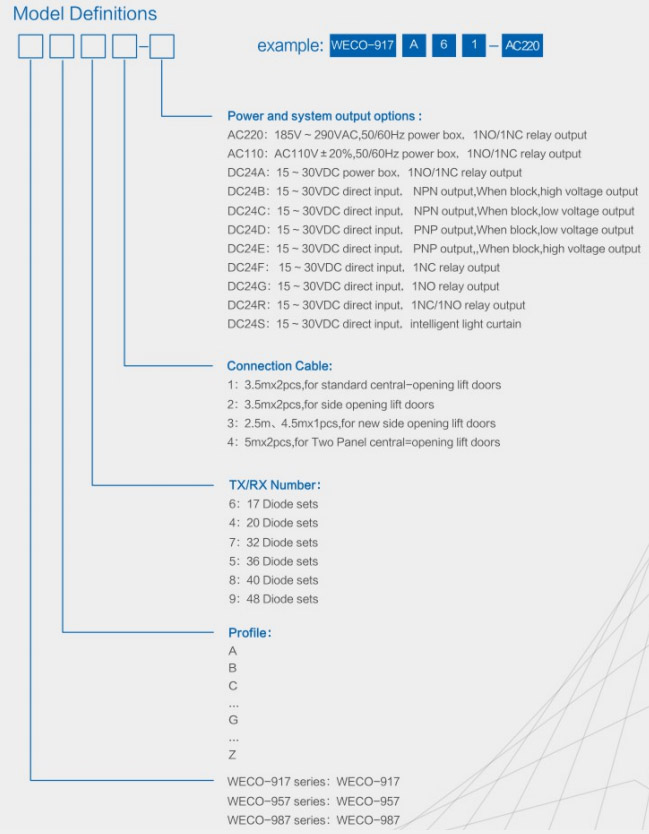

| Dzina lazogulitsa | Elevator kuwala chophimba |
| Njira yotseguka | Mbali yotseguka kapena yotseguka pakati |
| Voteji | AC220V, AC110V, DC24V |
| Nambala ya Diode | 17, 32 |
| Number of Beams | 94-33 Miyendo, 154-94 Miyendo |
1. Ndi kudzifufuza ntchito, Mphamvu bokosi linanena bungwe ochiritsira ndi kudzifufuza linanena bungwe
2. Anapambana mayeso a TUV ku Germany, ndikutsatira mfundo zapadziko lonse lapansi
3. Dormancy ntchito, kutalikitsa moyo ntchito mankhwala
4. Landirani ukadaulo watsopano, PCB yokhala ndi luso lamphamvu la kukana dzimbiri, komanso luso lamphamvu losinthira kumunda, lokhazikika komanso lodalirika.
5. Kukongola kowoneka bwino, kuyika kosavuta, koyenera ma elevator ambiri amtundu
6. Njira zamakono ndi zida, njira zodalirika za SMT pamwamba padding
7. Zosankha kuti ogwiritsa ntchito asankhe NPN/PNP output ( Transistor output) popanda bokosi lamagetsi
Chotchinga chowala cha elevator ndi chida choteteza chitetezo pazitseko chomwe chimapangidwa pogwiritsa ntchito mfundo ya kulowetsa zithunzi. Ndizoyenera zikepe zonse ndipo zimateteza chitetezo cha anthu omwe amalowa ndikutuluka mu elevator. Chotchinga chowala cha elevator chimapangidwa ndi magawo atatu: ma infrared transmitters ndi zolandirira zomwe zimayikidwa mbali zonse za chitseko chagalimoto ya elevator, ndi zingwe zapadera zosinthika. Pazofuna zachitetezo cha chilengedwe komanso kupulumutsa mphamvu, ma elevator ochulukirapo asiya bokosi lamagetsi. Mitundu ina ya makatani opepuka amayenera kugwiritsa ntchito mabokosi amagetsi chifukwa chakusatetezeka kwawo pakusokoneza ma elekitiroma. Komabe, ndi kutchuka kwa lingaliro la ma elevator obiriwira, makatani opepuka opanda mabokosi operekera magetsi ndizochitika. Chifukwa njira yosinthira 220V kukhala 24V iyenera kutaya mphamvu zambiri.
Chotchinga chowala cha THY-LC-917 chili ndi chubu chowongolera cha LED choyendetsedwa ndi CPU pa katani wamba. Gulu lopangidwa ndi mitundu iwiri ya LED likuwonetsa momwe malo otetezera nsalu yotchinga amawonekera, kotero kuti nsalu yotchinga imakhala ndi mawonekedwe owoneka bwino pachitetezo chanthawi zonse. Waumunthu kwambiri.

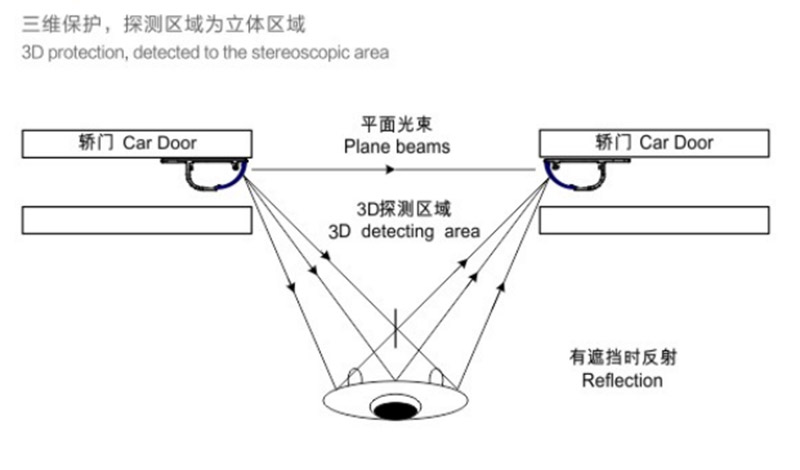

Pali machubu angapo otulutsa ma infrared kumapeto kwa nsalu yotchinga yowunikira. Motsogozedwa ndi MCU, machubu otulutsa ndi kulandira amayatsidwa motsatizana, ndipo kuwala komwe kumatulutsa mutu umodzi wotulutsa kumalandiridwa ndi mitu yolandila kangapo kuti ipange sikani yamitundu yambiri. Kupyolera mu kuyang'ana mosalekeza kwa dera lachitseko cha galimoto kuchokera pamwamba mpaka pansi, chinsalu chotchinga cha infrared chitetezo chimapangidwa. Pamene cheza chilichonse chatsekedwa, popeza kutembenuka kwa photoelectric sikungatheke, nsalu yotchinga imayesa kuti pali chotchinga, choncho imatulutsa chizindikiro chosokoneza. Chizindikiro chosokonezachi chikhoza kukhala chizindikiro chosinthira kapena chizindikiro chapamwamba komanso chotsika. Dongosolo lowongolera litalandira chizindikiro kuchokera pansalu yowunikira, nthawi yomweyo limatulutsa chizindikiro chotsegulira chitseko, ndipo chitseko chagalimoto chimasiya kutseka ndikutsegula mobwerera. Khomo la elevator limatha kutsekedwa nthawi zonse okwera kapena zopinga zitachoka pamalo ochenjeza, kuti akwaniritse cholinga chachitetezo. Pewani ngozi za anthu omwe agwidwa m'zikepe.
1. Kuyika kwa mafoni a transmitter ndi receiver
Kuyika kwa foni yam'manja kwa chinsalu chounikira kumatanthauza kuyika ndi kugwiritsa ntchito cholumikizira chotchinga, cholandila, kapena chimodzi mwazomwe zimakhazikika pachitseko chagalimoto ndikusuntha ndi chitseko chagalimoto. Munthawi yanthawi zonse, chotumizira ndi cholandila zimakhazikika pamphepete mwa chitseko chagalimoto.
Njira yopangira chitseko cham'mbali ndikukonza chinsalu chowala pagalimoto ya elevator ndi m'mphepete mwa chitseko chagalimoto ndi zomangira.
Njira yopangira chitseko chogawanika chapakati ndikukonza chinsalu chowala pamphepete mwa chitseko cha galimoto ya elevator ndi zomangira.

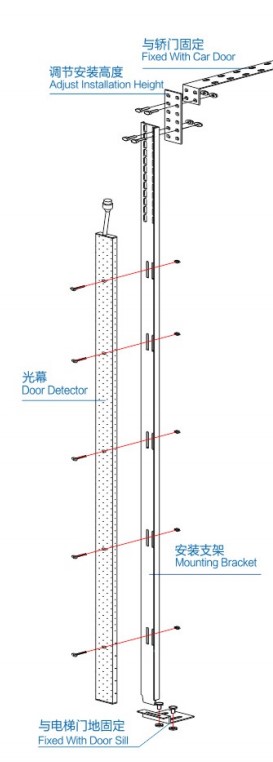

2. Kukhazikitsa kokhazikika kwa transmitter ndi wolandila
Kuyika kokhazikika kwa nsalu yotchinga yowunikira kumatanthawuza kuyika ndi kugwiritsa ntchito chosindikizira chamagetsi ndi cholandirira chokhazikika kumapeto kwa sill ya chitseko cha galimoto kudzera pa bulaketi yokhazikika. Wotumiza ndi wolandila sangathe kusuntha ndi chitseko chagalimoto.
